The SHE 36 is renowned for her beautiful lines and stunning sailing characteristics. She is swift, stiff and extremely capable inshore and offshore. There really is little to compare her with in this era of design; she turns heads and leaves most in her wake.

Bedlam has been loved and updated and looking for her next proud owner.

Hull, deck & superstructure / General Dimensions & general info.

-  LOA - 10.82m
-  LWL -   8.99m
-  Beam - 3.20m
-  Draft -  1.92m
-  Displacement - 6,613kg
-  Ballast - 2,449kg
-  Designed by - Sparkman & Stephens
-  Built by - South Hants Engineering (UK)

Hull, deck & superstructure

-  White GRP hull in original gelcoat with black vinyl cove line and waterline.
-  GRP deck and superstructure.
-  Deep cockpit locker to starboard.
-  Teak trim in the cockpit.

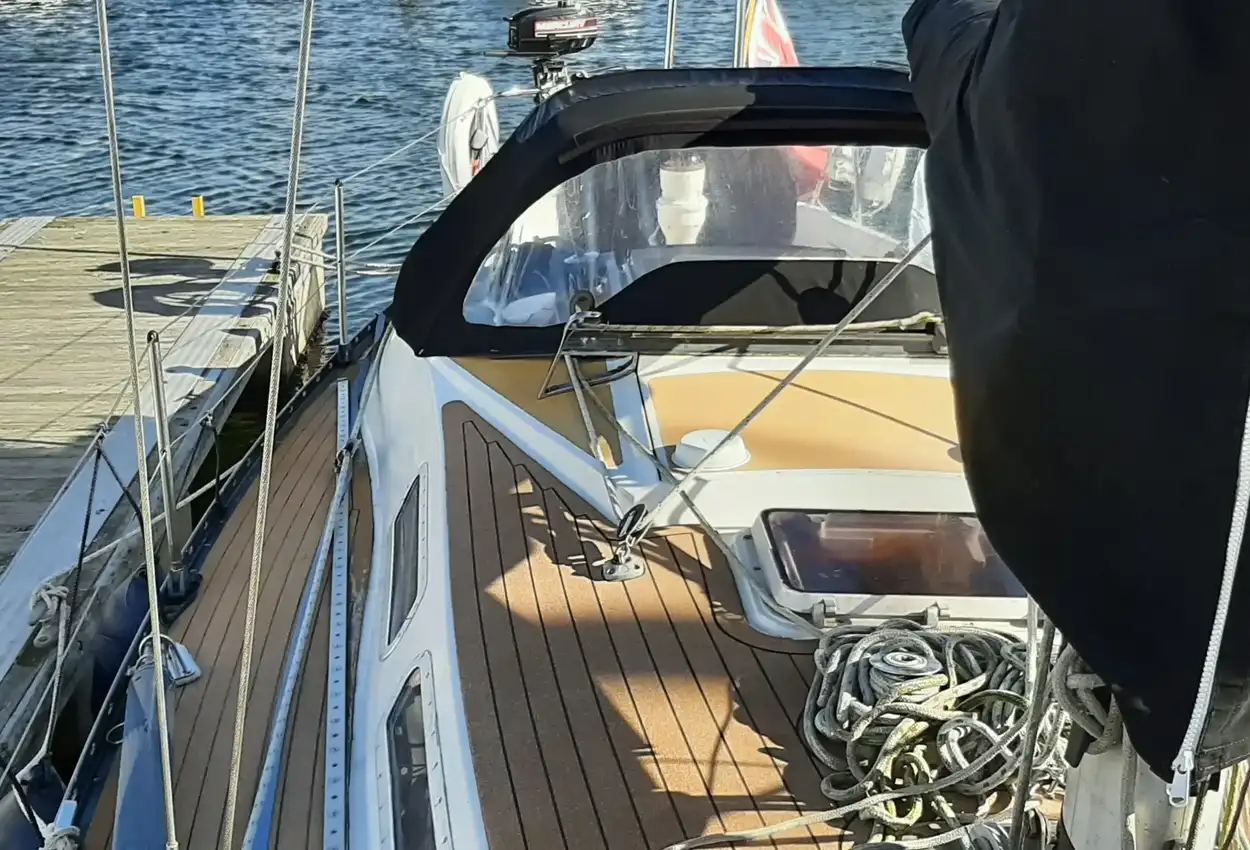

-  Marine Deck 2000 laid over original Shedeck.

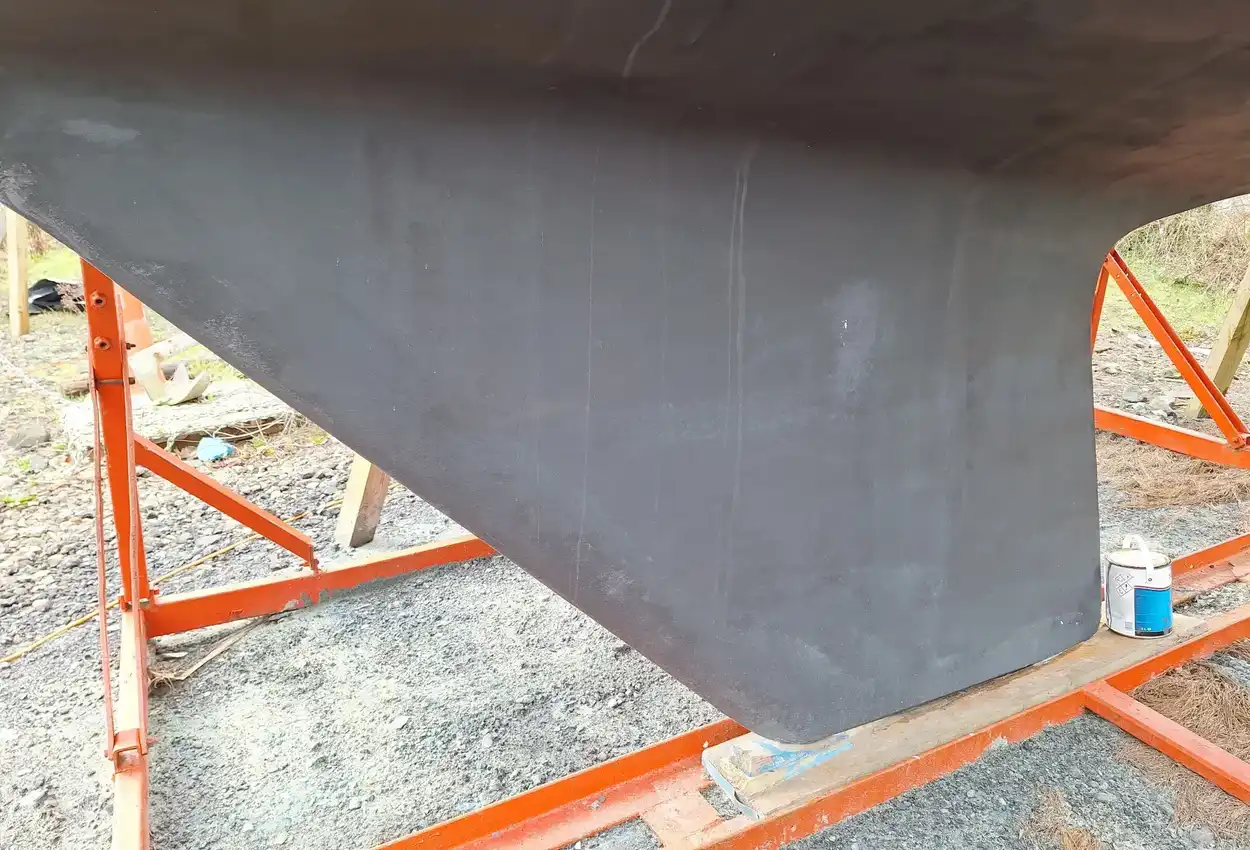

-  Fin keel with full skeg hung rudder.
-  Wheel steering with newly recovered wheel.
-  Demountable cockpit table.
-  Antifouled in black - March 2024.

Interior & accommodation

-  7 berths.
-  Varnished Teak interior. Refinished 2016.
-  Oatmeal upholstery. Replaced 2016.
-  Pressurised hot and cold water system.
-  Diesel fired warm air central heating.
-  TV, DVD player installed 2018.
-  Stereo / Radio.

Forecabin

-  V berth.
-  Raised hull side open storage lockers port and starboard.
-  Small raised bookcase at the foot of the bed.
-  Opening deck hatch.
-  To port aft are two drawers and a locker above.
-  Wet hanging locker opposite the heads.

Heads

-  Fully moulded heads compartment.
-  Lavac marine flushing toilet.
-  Sink with pressurised hot and cold water and manual cold water via foot pump.
-  Storage locker under the sink.
-  6 x open storage lockers with Perspex fiddles.
-  Mirror.

Saloon

-  Single settee berth to starboard with pilot berth above.
-  Storage lockers behind seat backs.
-  U shaped seating area to port with open fronted storage outboard and a shelf underneath.
-  The folding leaf table also lowers to form a good sized double berth when required.
-  Central deck hatch.
-  4 coachroof windows.

Navigation station and quarter berth

-  Aft to port is a forward facing chart table with storage outboard in the form of bookcases, shelves and lockers.
-  The chart table is a good size and has internal storage for navigation equipment and charts. The pedestal has three drawers.
-  The quarter berth extends aft and is an ideal skippers berth.

Galley

-  A well appointed L shaped galley sits aft to starboard.
-  Double stainless steel sinks. One sink with pressurised hot and cold water. There is manual cold water via a foot pump which will feed both sinks, leaving the second sink ideal for rinsing/draining. The sinks have a fitted top to extend the work surface when not in use.
-  Underneath is a storage locker.
-  Neptune 2000 stainless steel gimbaled cooker sits in the center with 2 burners grill and oven. There is a stainless steel crash bar for safety.
-  The L shape sits aft and ads extra work surface. There is an inset food storage bin in the galley top with a lid.
-  Outboard is well set up with dedicated crockery and cup storage and lockers with Perspex sliding doors.
-  There is a open fronted storage locker, shelf and kitchen role holder.

General specification Deck equipment

-  Anchor well with below deck electric anchor windlass installed by Stirling Marine.
-  Delta anchor with 36m of 8mm chain and 40m of three strand warp.
-  Main control lines lead aft via rope clutches.
-  2 x 2 speed, self tailing coachroof winches.
-  1 x 2 speed, non-self tailing mainsheet winch mounted on coachroof.
-  Coachroof mounted reefing winch aft of the mast.
-  Bridge deck adjustable mainsheet track.
-  Genoa tracks with pin stop cars.
-  2 x 2 speed cockpit winches.

Rig, rigging & sails

-  Single spreader masthead rigged, keel stepped, silver anodised, mast.
-  Stainless steel standing rigging last replaced 2013. Last checked in 2022.
-  Silver anodised boom with solid strut vang.
-  2 x Carbon spinnaker poles with deck mounts. Set up to run as a single or twin gybing set up with twin Sheets and Guys.
-  Selden Furlex 200s roller reefing headfoil. Serviced anually.
-  Nemo, winch handle driven, backstay adjuster.

Sails

-  New roller furling Genoa and mainsail in 2014. Serviced in 2022 and in good condition.
-  Spinnaker and cruising chute.
-  Various other sails.

Engine, propulsion & machinery

-  Yanmar 3GM 30F inboard diesel engine with shaft drive.
-  The engine was replaced around 10 years ago and may have done 1000-max 1500hrs. There is no record but the owner estimated 100 hrs/season in his ownership of 10 years and it had done virtually no hours when he bought the boat.
-  Engine services annually.
-  Max Prop 3 blade feathering prop. Serviced annually.
-  The engine has given the owners trouble free motoring.

Electronics & navigation equipment

-  Full set of B&G instruments including wind, speed and depth.
-  2 x B&G Triton2 multi function displays mounted in hatch garage pod.
-  B&G Vulcan 7" chart plotter at wheel.
-  Simrad IS20 electronic compass.
-  Raymarine ST4000+ Autopilot.
-  Garmin GPS 520s chart plotter at chart table.
-  JVC radar 1000, stand alone unit mounted at chart table.
-  B&G V50 DSC VHF with fist mike.
-  Integrated AIS receiver.
-  Handheld VHF.
-  Brass clock, barometer & tide clock on starboard forward bulkhead.
-  Binnacle mounted magnetic compass.

Electrical

-  2 x 75Ah domestic batteries. New March 2024.
-  1 x 65AH engine battery
-  Marine battery charger.
-  All interior lighting changed to LED.
-  240v mains shore power, professionally installed.
-  Shore power cable.
-  Twin 240v sockets at chart table, galley and forward cabin.
-  Main switch panel replaced including new circuit breaker units.

Tankage & systems

-  Stainless steel fuel tank - Approx. 100L.
-  2 x flexible water tanks - Approx. 120L.
-  Pressurised hot and cold water system.

Canvas work

-  Black Sprayhood.
-  Black mainsail stack pack with lazy jacks.
-  Black wheel cover.

Safety gear & equipment

-  EPIRB.
-  Eifire/Co2 monitor.
-  Plastimo Gas detector.
-  Fire blanket.
-  Fire extinguishers.
-  2 x horseshoe life belts, one with McMurdo light.
-  Cyclops radar reflector at top of mast.
